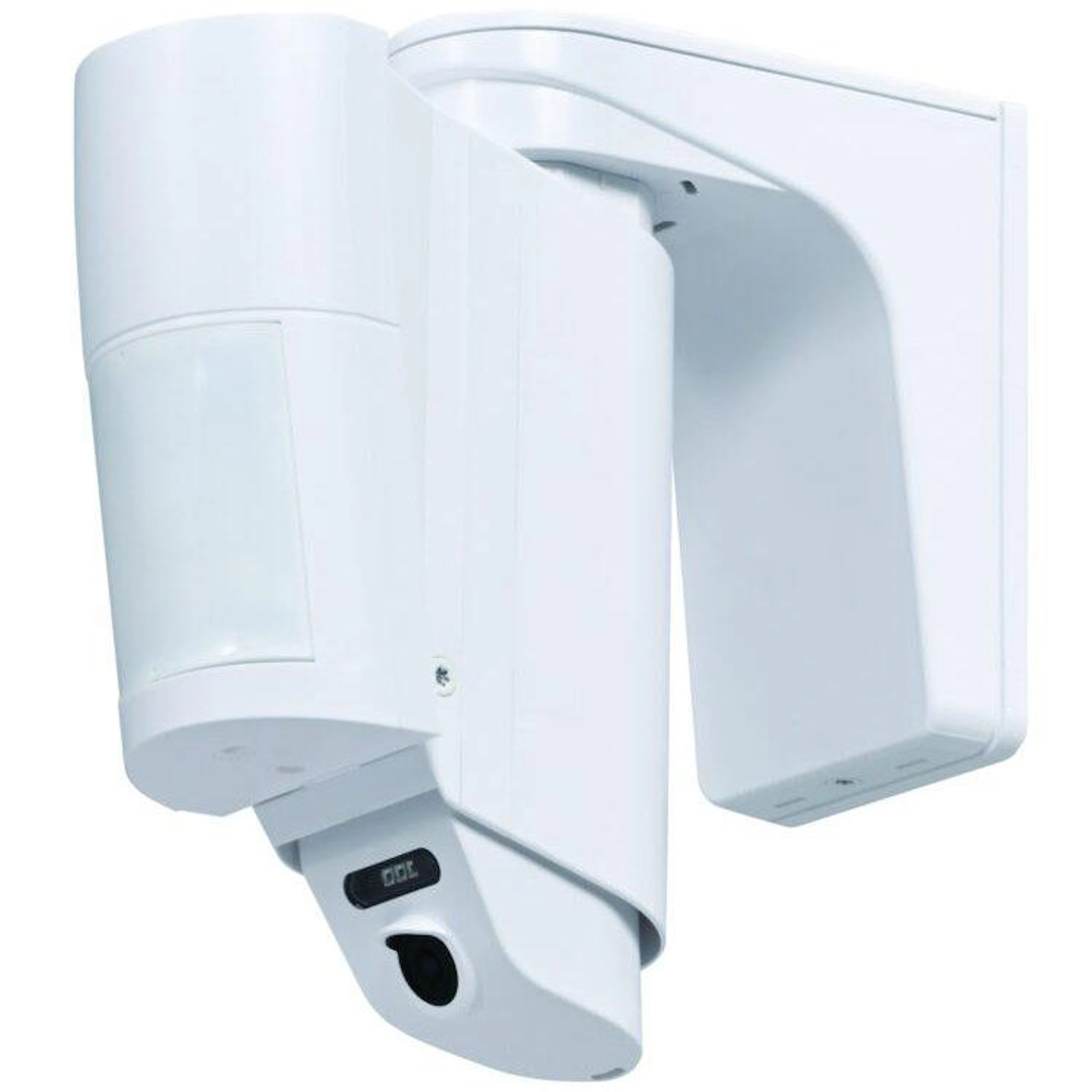

InSight INS-QXI-ST wide-angle detector with sensor and video analytics
- Wide 12m, 120 degree detection with VCA
- Integrated camera and infrared LED
- Intelligent detection logic
- ONVIF compliant
The INS-QXI-ST provides wide angle detection of up to 12m and across 120 degrees, with an auto-configured and aligned camera angle to perfectly match the detection area for excellent event capture. Perfect for protecting wide open areas such as the approach to buildings, car parks and more.Due to OPTEX's intelligent logic, the detection performance won't be affected by even the most adverse weather, such as heavy rain, fog and high temperatures. InSight sensors are compatible with ONVIF and OPTEX's Intelligent Visual Monitoring Solution, CHeKT Cloud.
Specifications
See details
Details
Product Range
InSight Series
Model Code
INS-QXI-ST
Detection method
Passive infrared
Detection Coverage
12.0 m (40') 120° wide
Detectable speed
0.3 to 2.0 m/s (1' to 6'7"/s)
Sensitivity
2.O°C ( 3.6°F) at 0.6 m/s
Power input
PoE (IEEE 802.3af compliant) Mini-jack 12 V DC 420 mA max. Terminal 9.5 to 16 V DC/ 20 TIA max. at 12V DC
Alarm period
2.0 ± 0.5 s
Warm-up period
Approx. 60 s (LED blinks)
Alarm output (R)
N.C/N.O. switchable, 28 V DC 0.1 A max.
Tamper output
N.C. 28 V DC 0.1 A max. Open when the cover is opened
LED indicator
[1] Warm-up [2] Alarm [3] Walk test end
Operation temperature
-30°C to +50°C (-22°F to +122°F)
Relative humidity
95% max.
IP rating
IP 54
Installation Method (indoor/outdoor)
Outdoor
Mounting height
2.2 to 2.7 m (7' 3" to 8'11")
Weight
0.85kg (30.0oz)
Accessories
[1] Mounting screw (4 x 20 mm) x 2, [2] T20 Torx wrench x 1 [3] Area masking strips x 1[4] Waterproof cap for LAN connector x 1
