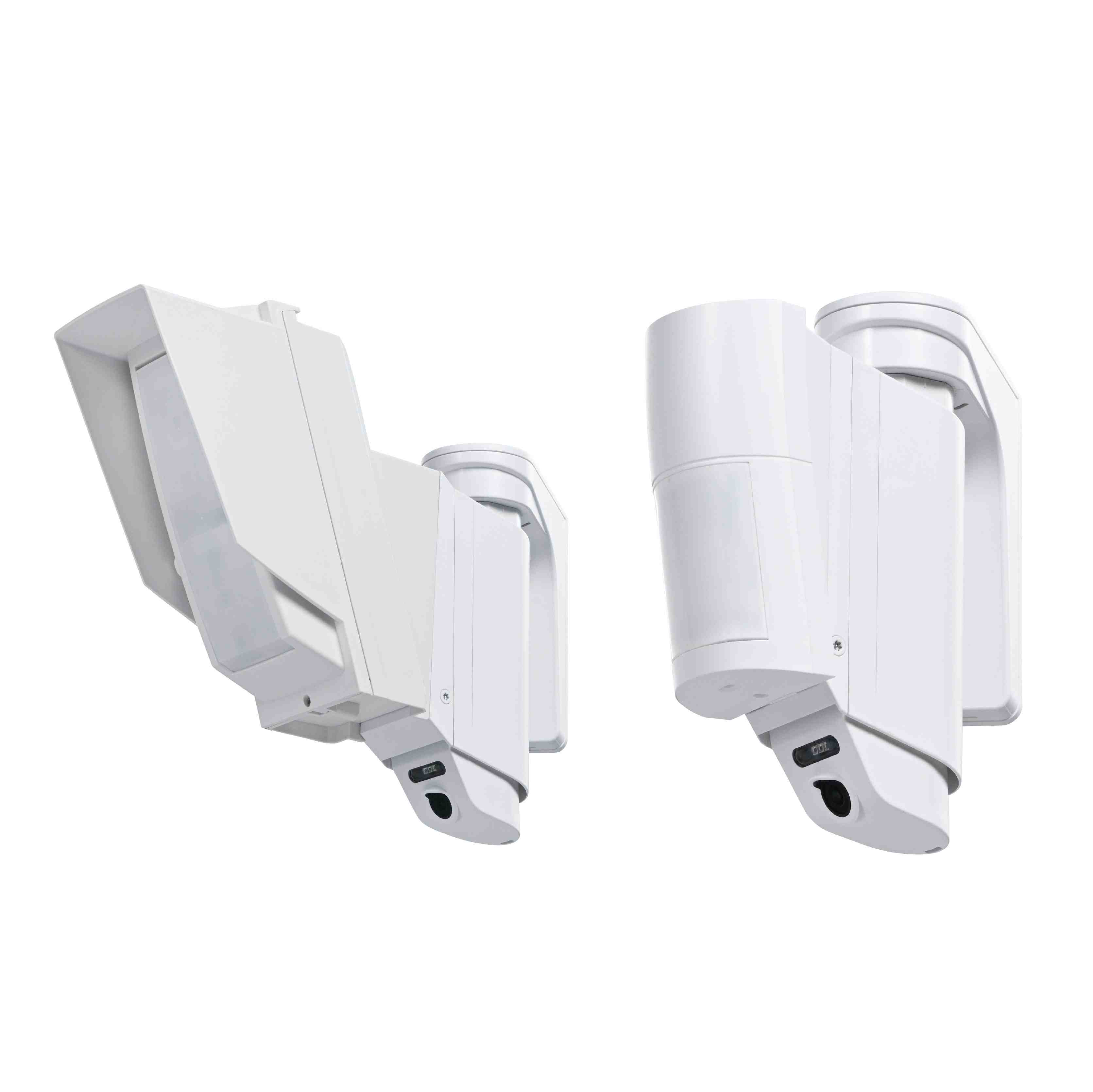

InSight INS-HX-80N narrow-angle detector with sensor and video analytics
24m narrow detection with VCA, high mount of up to 3m
- Narrow and long 24m detection area
- Integrated camera and infrared LED
- Intelligent detection logic
- ONVIF compliant

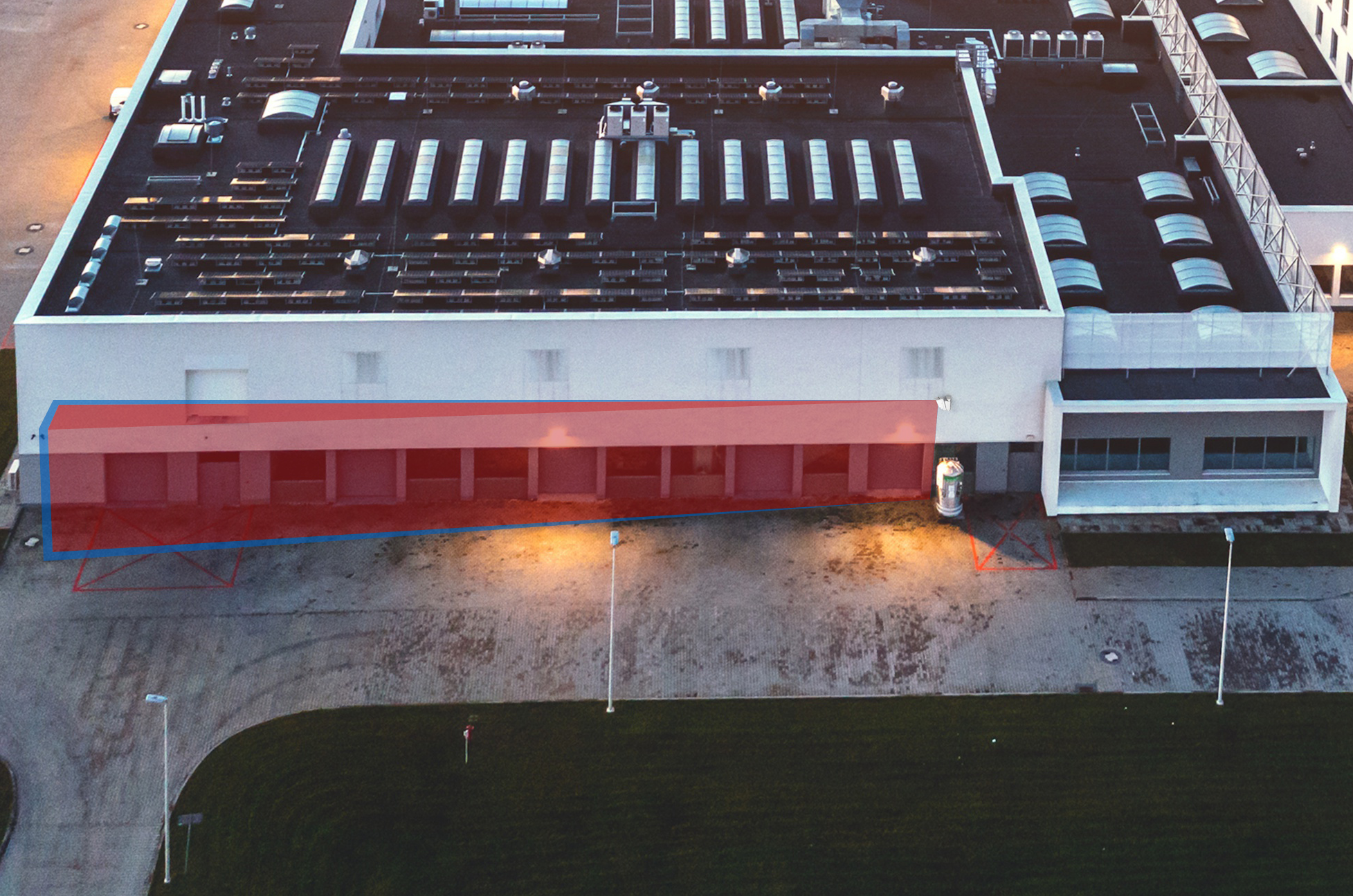

The INS-HX-80N provides wide narrow detection of up to 24m, with an auto-configured and aligned camera angle to perfectly match the detection area for excellent event capture. Perfect for protecting long and narrow spaces such as corridors, allyways and more. Due to OPTEX's intelligent logic, the detection performance won't be affected by even the most adverse weather, such as heavy rain, fog and high temperatures. InSight sensors are compatible with ONVIF and OPTEX's Intelligent Visual Monitoring Solution, CHeKT Cloud.
The INS-HX-80N provides wide narrow detection of up to 24m, with an auto-configured and aligned camera angle to perfectly match the detection area for excellent event capture. Perfect for protecting long and narrow spaces such as corridors, allyways and more. Due to OPTEX's intelligent logic, the detection performance won't be affected by even the most adverse weather, such as heavy rain, fog and high temperatures. InSight sensors are compatible with ONVIF and OPTEX's Intelligent Visual Monitoring Solution, CHeKT Cloud.
Specifications
See details
Details
Product Range
InSight Series
Model Code
INS-HX-80N
Detection method
Passive infrared
Detection Coverage
24 m x 2.0 m (80' x 67") narrow
Detectable speed
0.3 to 1.5 m/s (1' to 5'/s)
Sensitivity
2.OOC ( 3.6 0F) at 0.6 m/s
Power input
PoE (IEEE 802.3af compliant) Mini-jack 12 V DC 420 mA max. Terminal 9.5 to 18 V DC/ 35 ITA max. at 12 V DC
Alarm period
2.0 ± 1 s
Warm-up period
Approx. 60 s (LED blinks)
Alarm output (R)
N.C/N.O. switchable, 28 V DC 0.1 A max.
Tamper output
N.C. 28 V DC 0.1 A max. Open when the cover is opened
LED indicator
[1] Warm-up [2] Alarm
Operation temperature
-30°C to +50°C (-22°F to +122°F)
Relative humidity
95% max.
IP rating
IP 55
Installation Method (indoor/outdoor)
Outdoor
Mounting height
2.5 to 3.0 m (8' 2" to 10")
Weight
1 .2kg (42.3oz)
Accessories
[1] Mounting screw (4 x 20 mm) x 2 [2] T20 Torx wrench x 1 [3] Waterproof cap for LAN connector x 1
