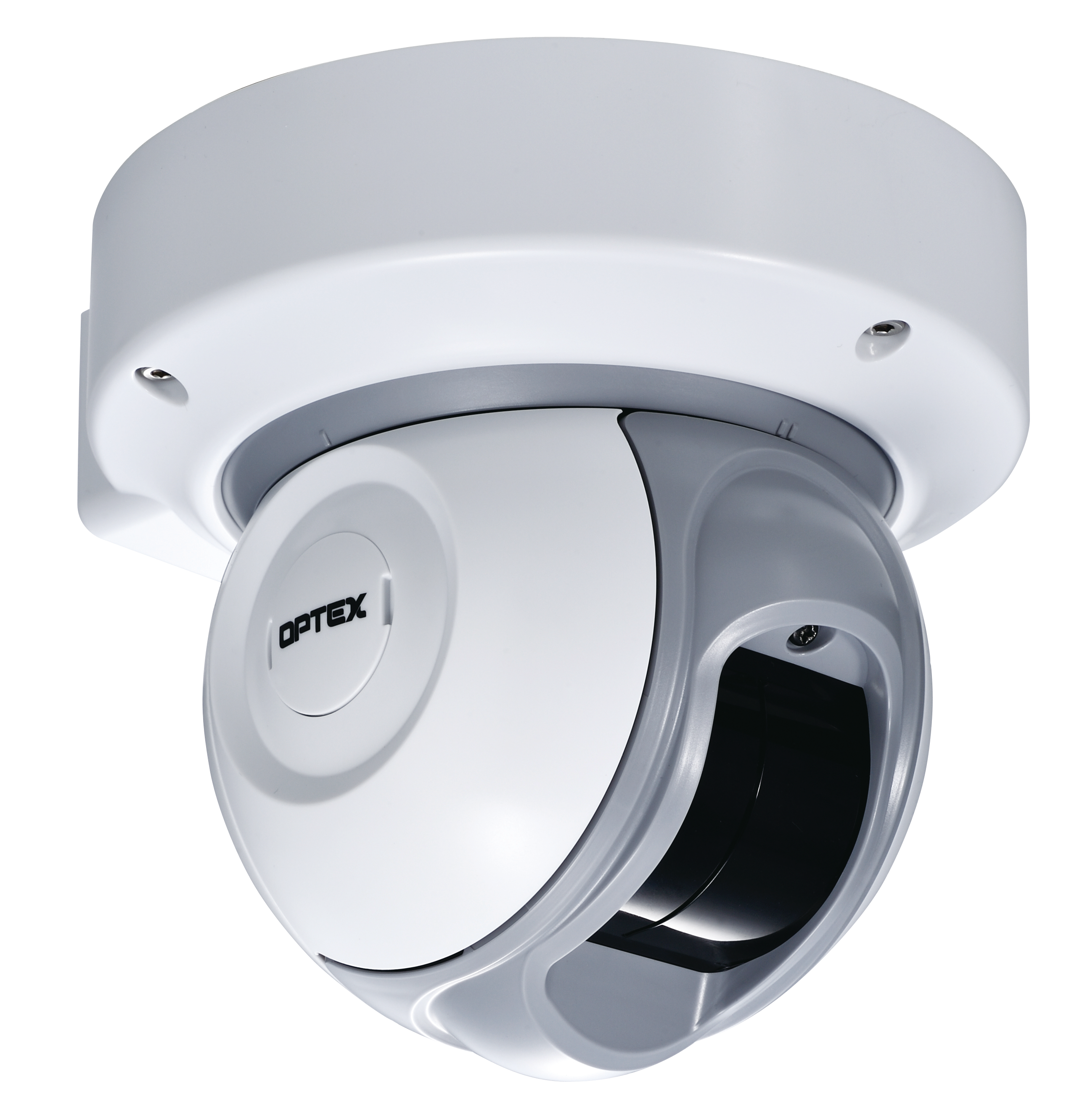

RLS-2020I Indoor LiDAR Grade 3
Indoor laser scanner, 20m20m 95 degree coverage. Features customisable ‘virtual’ wall or pane.
- Multi-angle adjustment shell structure
- Unique detection algorithm
- Automatic area setting function
- Advanced area setting
The RLS-2020I is our compact indoor laser sensor -Grade 3 compliant - which provides a customisable ‘virtual’ wall or pane with a detection area up to 20mx20m to identify the presence of people or objects. Our REDSCA series uses LiDAR technology to protects areas from security breaches such as intrusion, theft or unauthorised access as well as improving the reliability of video based motion detection and surveillance.
The REDSCAN RLS-2020I has been designed to integrate with security or safety systems. It creates a detection area that cannot be easily provided by other sensors or video based detection systems such as virtual walls or virtual ceilings. The RLS 2020I is an ideal sensor for protecting skylights in buildings, walls, assets such as paintings or shelves storing valuables goods. The discreet design and custom-paint option enables it to blend very well into an indoor environment.
Efficient Video Surveillance
Skylight Protection
Warehouse
Museum/Gallery
Datacentre
Airport
Commercial
Bank
Specifications
See details
Details
Product Range
Infrared Laser Scan
Model Code
RLS-2020I
Detection method
Laser
Detection Coverage
20 x 20 m, (approx. 65 x 65 ft.), 95 degrees
Detectable speed
0.25 degree / within 75 msec to 15 minutes (for indoor mode and outdoor mode) 0.25 degree / within 25 msec (for indoor throw-in mode), 0.125 degree / within 100 msec to 15 minutes (for Indoor high resolution mode)
Power input
10.5 to 30 VDC, PoE (IEEE802.3af/at compliant)
Current draw
500 mA max. (12 VDC), 250 mA max. (24 VDC), 6 W max. (PoE)
Alarm period
Approx. 2 second delay timer
Operation temperature
-40 to 50°C (-40 to 140°F)
IP rating
IP66
Installation Method (indoor/outdoor)
Indoor
Mounting height
2 m (6.7 ft.) or higher
Weight
1.0 kg (2.2 lb)
Dimensions
146 x 160 x 160 mm (5.8 x 6.3 x 6.3 inch)
Laser protection class
Class 1
Protocol
TCP/IP, UDP/IP, DHCP, DNS, HTTP, HTTPS, FTP, SNMPv1/v2c/v3, ICMP, ARP
Communication port
Ethernet RJ-45 10BASE-T / 100BASE-TX (Auto negotiation)
