How to correctly align our infrared (IR) beams

5 August 2024

Infrared (IR) beams offer excellent perimeter protection, creating an invisible barrier that if crossed triggers an alarm. OPTEX IR beams come in dual or quad options, but like any IR beam, aligning them is critical to getting them working correctly. Luckily OPTEX has technology in place that safeguards the alignment and makes this set up easier for the installer.

Aligning the Smart Line Series

Long range beams can be difficult to align for one person without any tools. The SL Quad beam series provide a number of easy alignment tools to make it as easy as possible.

Aligning the AX Series

The AX Series feature a highly durable structure and are designed to avoid unwanted crosstalk. The ideal optical pitch design reduces false alarms due to accidental beam interruption by falling leaves, birds, and so on. These features deliver performance with higher reliability in severe outdoor environmental condition.

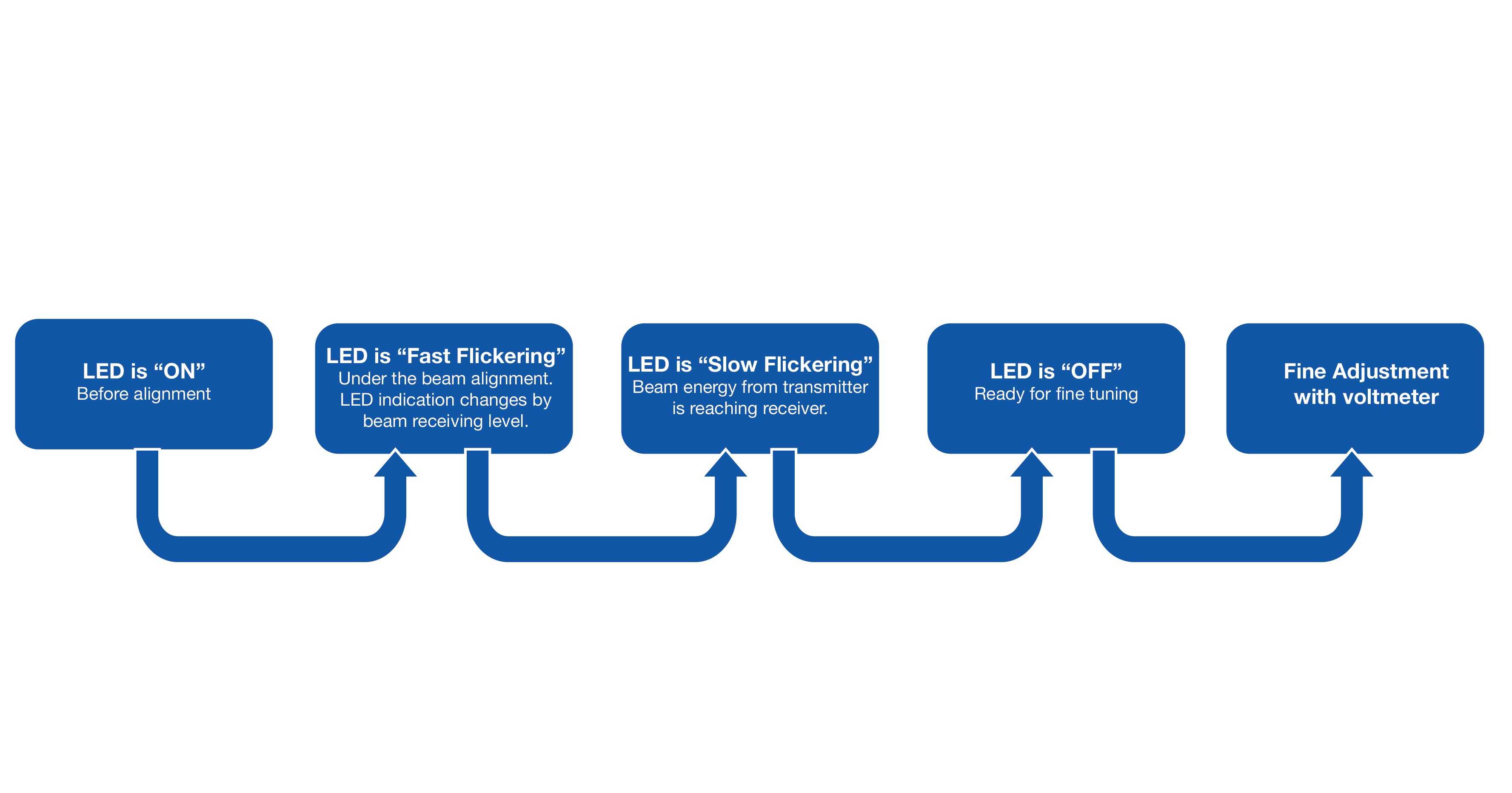

AX beams are equipped with a 4-step alarm indicator LED for fast and accurate optical alignment. The alignment condition is visually displayed on the LED. It shows the alignment condition by using four different processes to achieve accurate and easy alignment before fine tuning.

AX alignment

Filters

AX
Intrusion Detection
Technology
AX-70TN Outdoor IR beam, single channel

20m indoor/outdoor hardwired active infrared beam

  • Hardwired dual beam set
  • 99% beam blocking stability
  • IP65 structure with high sealing rubber packing
  • High grade spherical lens
AX
Intrusion Detection
Technology
AX-130TN Outdoor IR beam, single channel

40m outdoor AIR beam hardwired

  • Hardwired dual beam set
  • 99% beam blocking stability
  • IP65 structure with high sealing rubber packing
  • High grade spherical lens
AX
Intrusion Detection
Technology
AX-200TN Outdoor IR beam, single channel

60m outdoor hardwired Infrared beam

  • hardwired dual beam set
  • 99% beam blocking stability
  • IP65 structure with high sealing rubber packing
  • High grade spherical lens
AX
Intrusion Detection
Technology
AX-100TFR Outdoor wireless IR beam, 4 channels

30m outdoor AIR beam battery-powered with channel selection feature.

  • Battery-operated dual AIR beam
  • Stackable (channel selection)
  • Low installation costs
  • Triple tamper functions
AX
Intrusion Detection
Technology
AX-100TF Outdoor IR beam, 4 channels

30m outdoor Infrared beam hardwired with channel selection feature

  • Hardwired dual beam set
  • Alignment LED
  • Stackable (channel selection)
  • Lightning protection
AX
Intrusion Detection
Technology
AX-200TF Outdoor IR beam, 4 channels

60m outdoor Active Infrared beam hardwired with channel selection feature

  • Hardwired dual beam set
  • Alignment LED tool
  • Stackable (channel selection)
  • Lightning protection
AX
Intrusion Detection
Technology
AX-200TFR Outdoor wireless infrared beam, 4 channels

60m outdoor active infrared beam battery-powered with channel selection feature

  • Battery-operated dual AIR beam
  • Stackable (channel selection)
  • IP55 rating
  • Triple tamper functions
AXDH
Intrusion Detection
Technology
AX-350DH MK3 Outdoor IR beam
100m outdoor active infrared beam set hardwired
AXDH
Intrusion Detection
Technology
AX-650DH MK3 Outdoor IR beam
200m outdoor active infrared beam set hardwired
SLQDP
Intrusion Detection
Technology
SL-350QDP/ SL-350QDP-BT Outdoor photo beam professional, 4 channel

  • Aspherical lenses
  • Including LED and sound gauge
  • Stackable model
  • Dual-modulation Beam

SLQDP
Intrusion Detection
Technology
SL-650QDP/ SL-650QDP-BT Outdoor photo beam professional, 4 channel

  • Dual-modulation
  • Stackable model
  • LED & sound gauge
  • Quad beams, aspherical lenses

SLQDP
Intrusion Detection
Technology
SL-200QN Outdoor IR beam single channel

  • High grade aspherical lenses
  • Two "easy-alignment" tools
  • Non-stackable model

  • 1
  • 2
