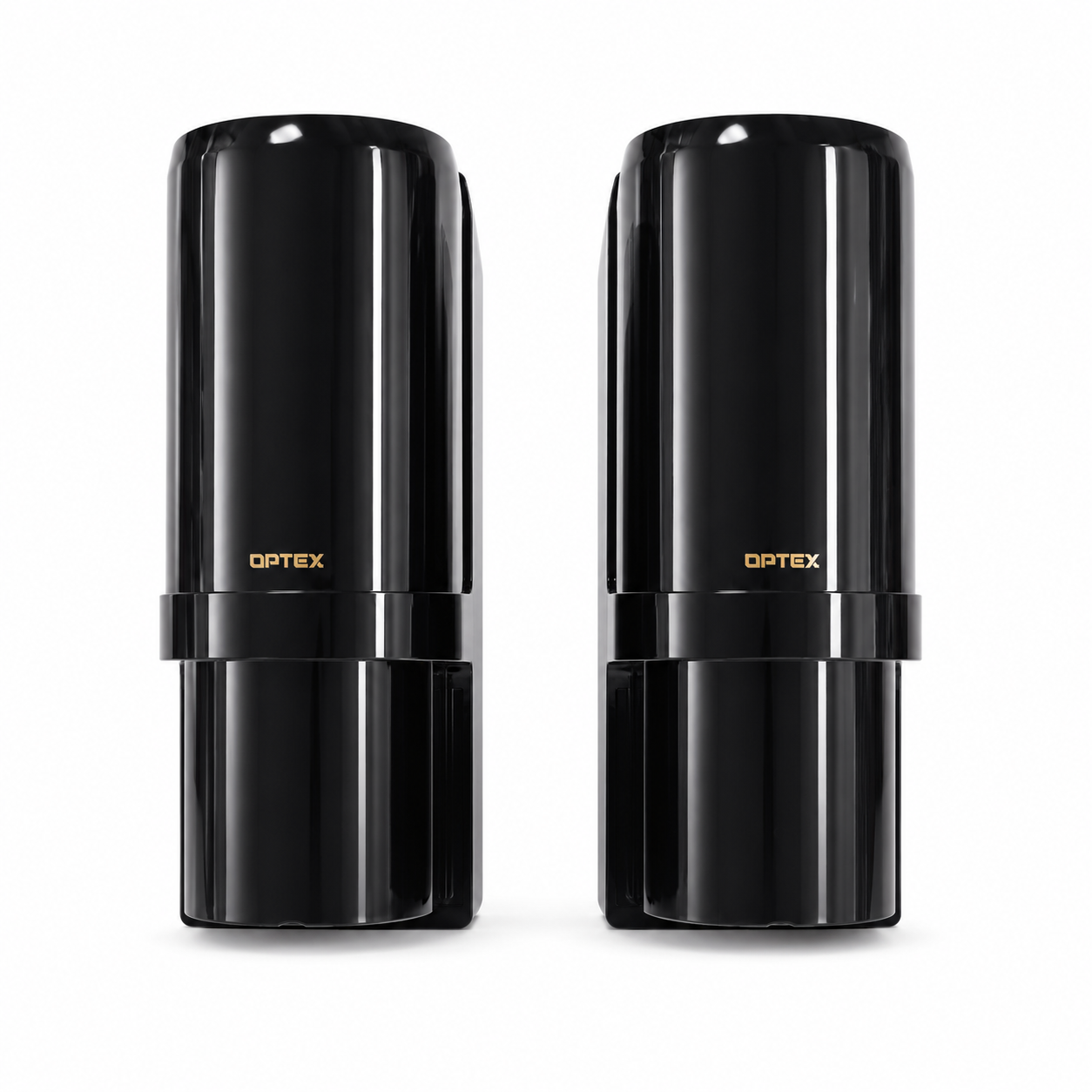

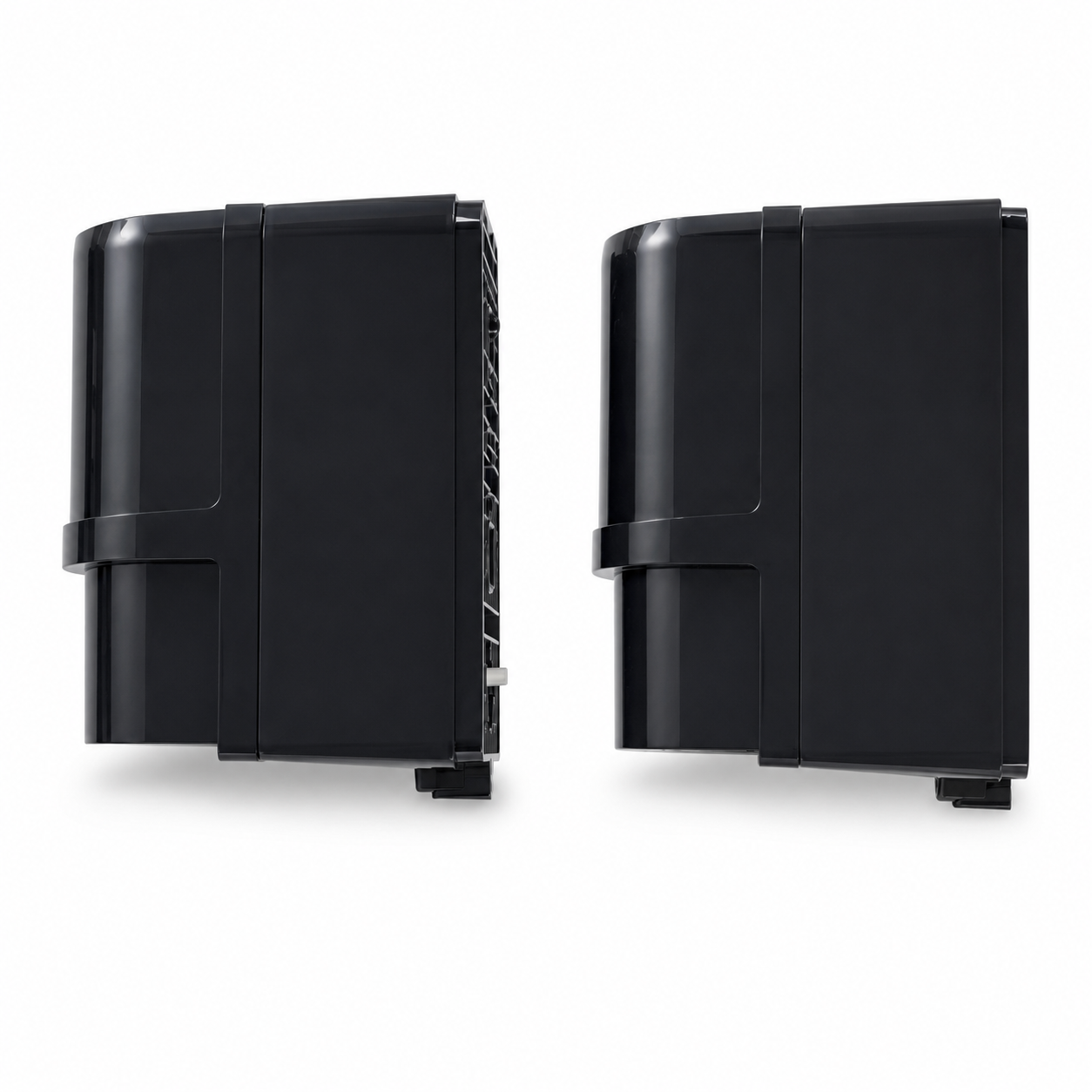

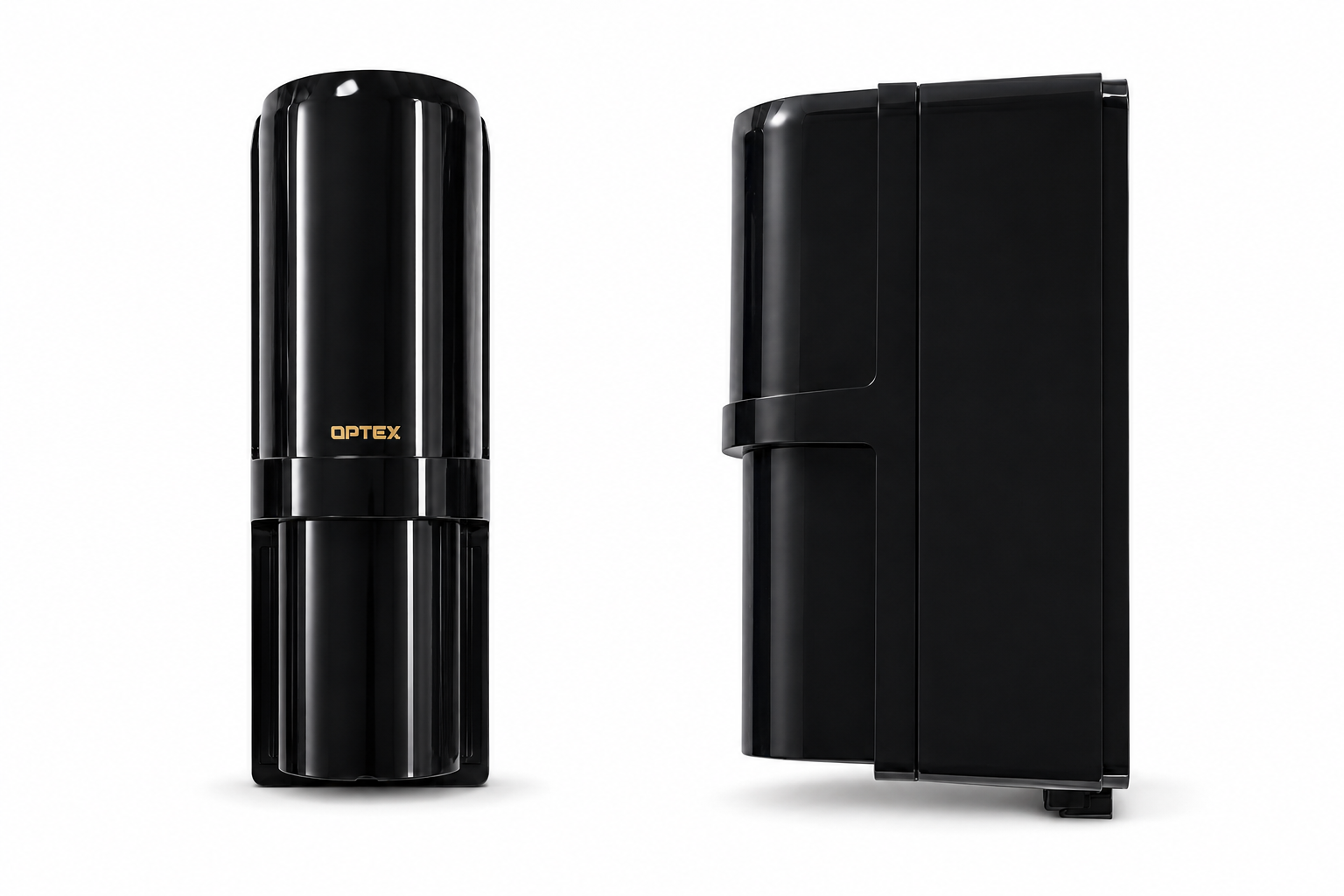

AX-200TFR Outdoor wireless infrared beam, 4 channels
60m outdoor active infrared beam battery-powered with channel selection feature
- Battery-operated dual AIR beam
- Stackable (channel selection)
- IP55 rating
- Triple tamper functions
AX-200TFR Outdoor wireless infrared beam, 4 channels
Filters
X
Filters
Technology
Active Infrared
IR Beam
Application
Perimeter
Advanced Features
Pet Tolerance
Communication
Hardwired
Wireless
Mounting
Wall
Pole
Intrusion Detection
Outdoor
Intrusion Detection
Technology
AX-70TN Outdoor IR beam, single channel
20m indoor/outdoor hardwired active infrared beam
- Hardwired dual beam set
- 99% beam blocking stability
- IP65 structure with high sealing rubber packing
- High grade spherical lens
Intrusion Detection
Technology
AX-130TN Outdoor IR beam, single channel
40m outdoor AIR beam hardwired
- Hardwired dual beam set
- 99% beam blocking stability
- IP65 structure with high sealing rubber packing
- High grade spherical lens
Intrusion Detection
Technology
AX-200TN Outdoor IR beam, single channel
60m outdoor hardwired Infrared beam
- hardwired dual beam set
- 99% beam blocking stability
- IP65 structure with high sealing rubber packing
- High grade spherical lens
Intrusion Detection
Technology
AX-100TFR Outdoor wireless IR beam, 4 channels
30m outdoor AIR beam battery-powered with channel selection feature.
- Battery-operated dual AIR beam
- Stackable (channel selection)
- Low installation costs
- Triple tamper functions
Intrusion Detection
Technology
AX-100TF Outdoor IR beam, 4 channels
30m outdoor Infrared beam hardwired with channel selection feature
- Hardwired dual beam set
- Alignment LED
- Stackable (channel selection)
- Lightning protection
Intrusion Detection
Technology
AX-200TF Outdoor IR beam, 4 channels
60m outdoor Active Infrared beam hardwired with channel selection feature
- Hardwired dual beam set
- Alignment LED tool
- Stackable (channel selection)
- Lightning protection
Intrusion Detection
Technology
AX-350DH MK3 Outdoor IR beam
100m outdoor active infrared beam set hardwired
Intrusion Detection
Technology
AX-650DH MK3 Outdoor IR beam
200m outdoor active infrared beam set hardwired
- 1
Specifications
See details
Details
Product Range
AX Beams
Model Code
AX-200TFR
Detection method
Four Channel
Detection Coverage
60m
Detectable speed
Selectable between 50, 100, 250, and 500 msec.
Power input
3.6 V 13.0 Ah: LSH20 lithium batteries manufactured by SAFT (not included) Transmitter: 2 units Receiver: 2 units
Alarm period
2 sec. (±1) nominal
Alarm output (R)
N.C./N.O. 28 VDC 0.2 A max.
Operation temperature
'-20°C – +60°C (-4°F – +140°F)
IP rating
IP55
Installation Method (indoor/outdoor)
Outdoor
Weight
1,600 g
