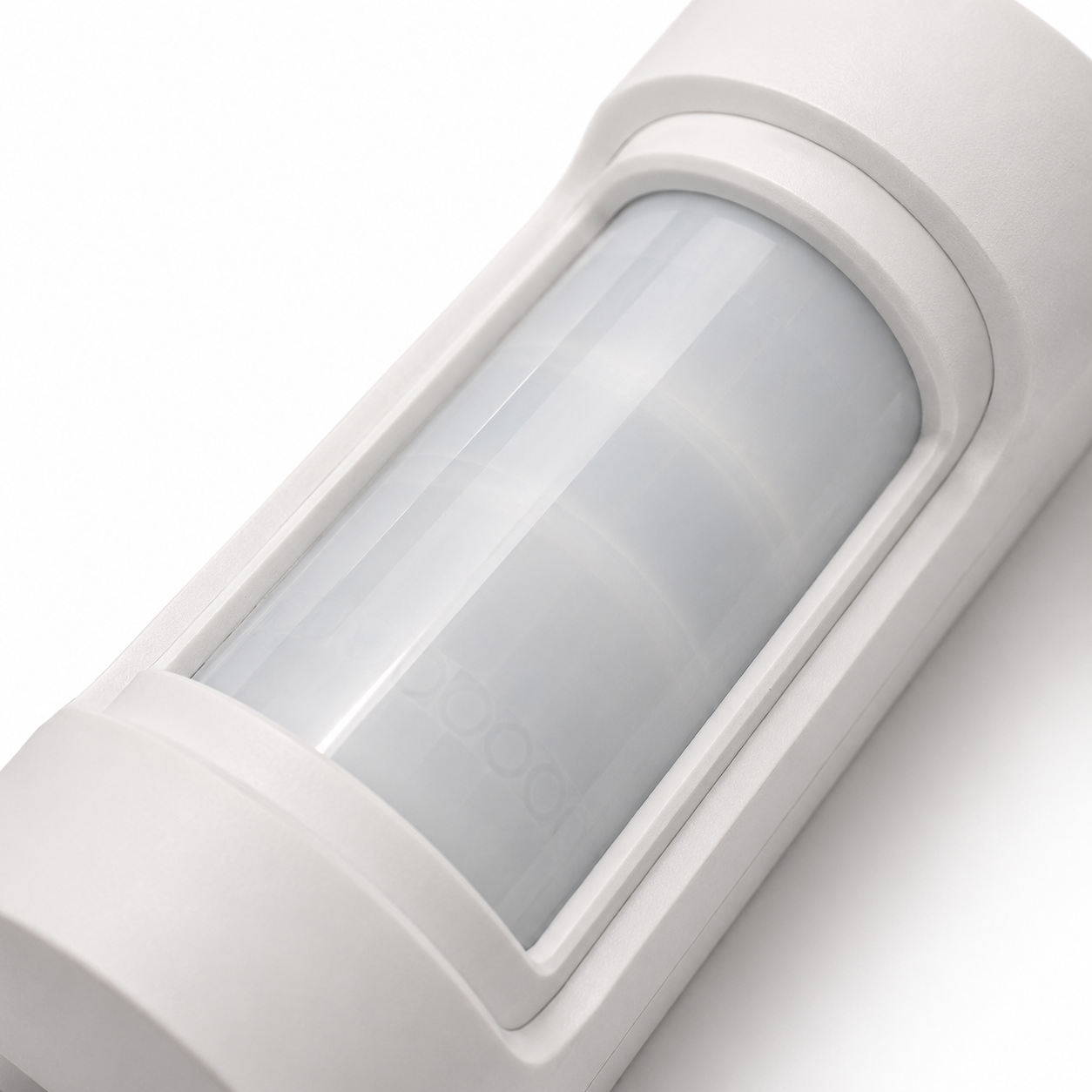

VXS-RAM Wireless outdoor 90-degree PIR
- Intelligent 12m wireless PIR with animal immunity
- Active Infrared antimasking
- Easy set up incl. automatic walk test mode
- Versatile design- choice of housing and front covers
Residential
Warehouse
Garden
Retail
Commercial
Education

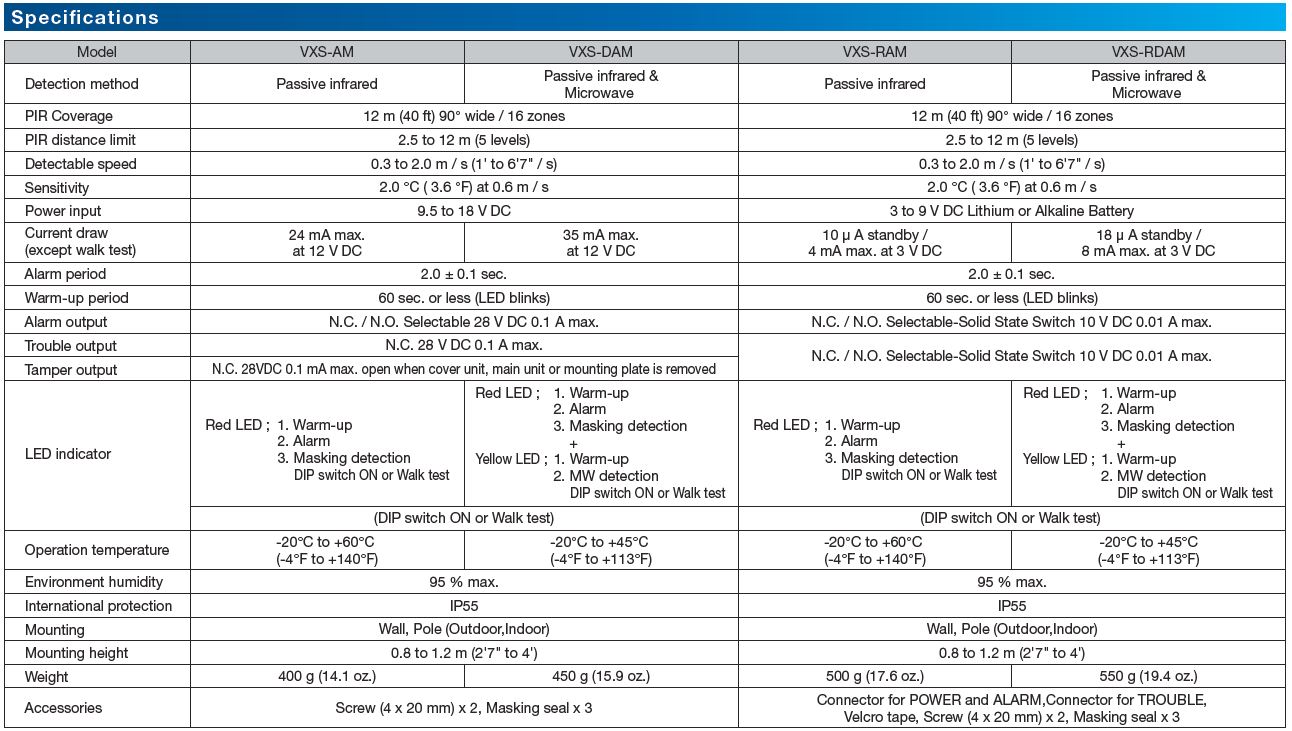

Specifications
See details
Details
Product Range
VX Shield Series
Model Code
VXS-RAM
Detection method
Passive infrared
Detection Coverage
12 m (40 ft) 90° wide / 16 zones
Detectable speed
0.3 to 2.0 m/s (1.0 to 6.7 ft./s)
Sensitivity
2.0°C (3.6°F) at 0.6 m/s (2 ft/s)
Power input
3 – 9 VDC (Lithium or Alkaline Battery)
Current draw
10 μA standby /4 mA max. at 3 VDC
Alarm period
2.0 ±1.0 sec.
Warm-up period
Approx. 60 sec. (LED blinks)
Alarm output (R)
N.C. / N.O. Selectable-Solid State Switch 10 VDC 0.01 A max.
Trouble output
N.C. / N.O. Selectable-Solid State Switch 10 VDC 0.01 A max.
Tamper output
N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A max
LED indicator
Red LED : 1. Warm-up 2. Alarm 3. Masking detection (DIP switch ON or Walk test)
Operation temperature
-20– +60°C (-4– +140°F)
Relative humidity
95% max.
Installation Method (indoor/outdoor)
Outdoor
Mounting height
0.8 - 1.2 m (2'7" - 3'11")
Weight
500 g (17.6 oz.)
Accessories
Connector for POWER and ALARM,Connector for TROUBLE,Screw (4 x 20 mm) x 2, Masking seal x 3
Security Grade
IP55
