HX-80NRAM Wireless outdoor PIR with antimasking
- Buildings
- House
- Garage
- Battery-powered outdoor sensor for alleyways
- Adjustable detection range
- Animal tolerance and digital analysis
- Active infrared antimasking
The HX-80N PIRs are mounted between 2.5 and 3 meter high and provide a narrow volumetric outdoor intrusion detection up to 24m. The HX-80N series is ideal to protect alleyways, areas along fences or the immediate approach to a building. It has been designed to differentiate between human and small to medium sized animals reducing a lot the risk of false alarm. The HX-80NRAM is a battery-powered model with active infrared anti masking.
| Adjustability to the site | Anti masking for peace of mind | The convenience of wireless |
| To adapt to the slope of the ground, the HX-80NRAM's bracket can rotate horizontal, 180 degree and can be tilted up or down vertically. With its built-in flaps and plates the HX-80NRAM can easily set up to mask either the longer range or mask shorter ranges and can focus only on the area of interest. | If the HX-80NRAM's sensor is sprayed, covered or obstructed while it is armed or disarmed, the active infrared anti-masking will be able to sense the threat when the alarm system is turned on and as a result will send through a notification. | The HX-80NRAM can be powered by a variety of universal batteries including CR123, CR2 and 1/2 AA (not included). Its housing can accommodate most wireless radio transmitters available in the market. This makes it a sensor easy to install in remote or temporary locations. |

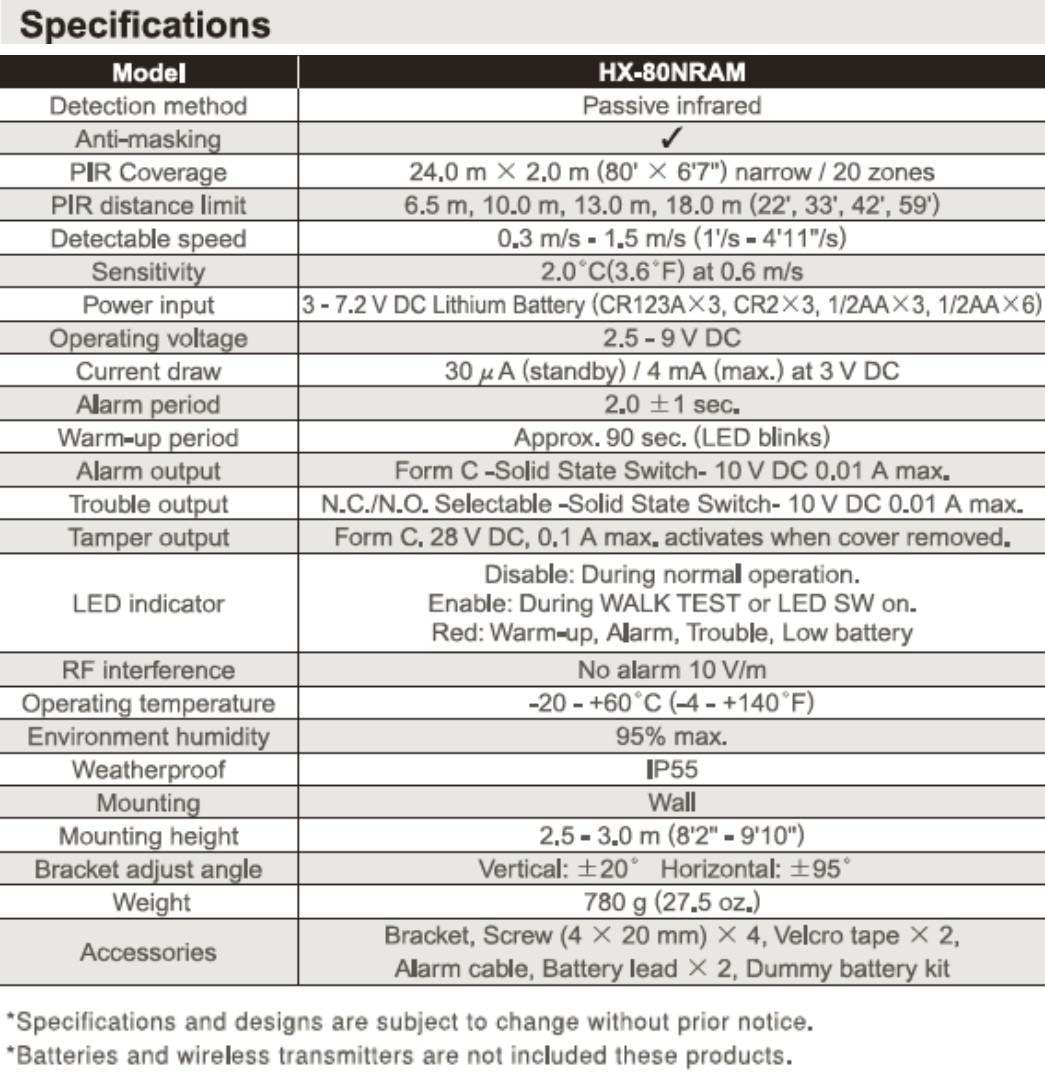

Specifications
See details
Details
Product Range
HX Series
Model Code
HX-80NRAM
Detection method
Passive infrared
Detection Coverage
24.0 m × 2.0 m (80' × 6'7") narrow / 20 zones
Detectable speed
0.3 m/s - 1.5 m/s (1'/s - 4'11"/s)
Sensitivity
2.0°C (3.6°F) at 0.6 m/s
Power input
3 - 7.2 VDC Lithium Battery (CR123A×3, CR2×3, 1/2AA×3, 1/2AA×6)
Current draw
30 μA (standby) / 4 mA (max.) at 3 VDC
Alarm period
2.0 ±1 sec
Warm-up period
Approx. 90 sec. (LED blinks)
Alarm output (R)
Form C - Solid State Switch - 10 VDC 0.01 A max
Trouble output
N.C./N.O. Selectable - Solid State Switch - 10 VDC 0.01 A
Tamper output
Form C. 28 VDC, 0.1 A max. changes when cover is removed
LED indicator
Disable : During normal operation. Enable : During WALK TEST or LED SW on. Red : Warm-up, Alarm, Trouble, Low battery
Operation temperature
-20 – +60°C (-4 – +140°F)
Relative humidity
95% max.
Installation Method (indoor/outdoor)
Outdoor
Mounting height
2.5 - 3.0 m (8.3 - 10 ft.)
Weight
780 g (27.5 oz.)
Accessories
Bracket, Screw (4 × 20 mm) × 4, Velcro tape × 2, Alarm cable, Battery lead × 2, Dummy battery kit
Security Grade
IP55
