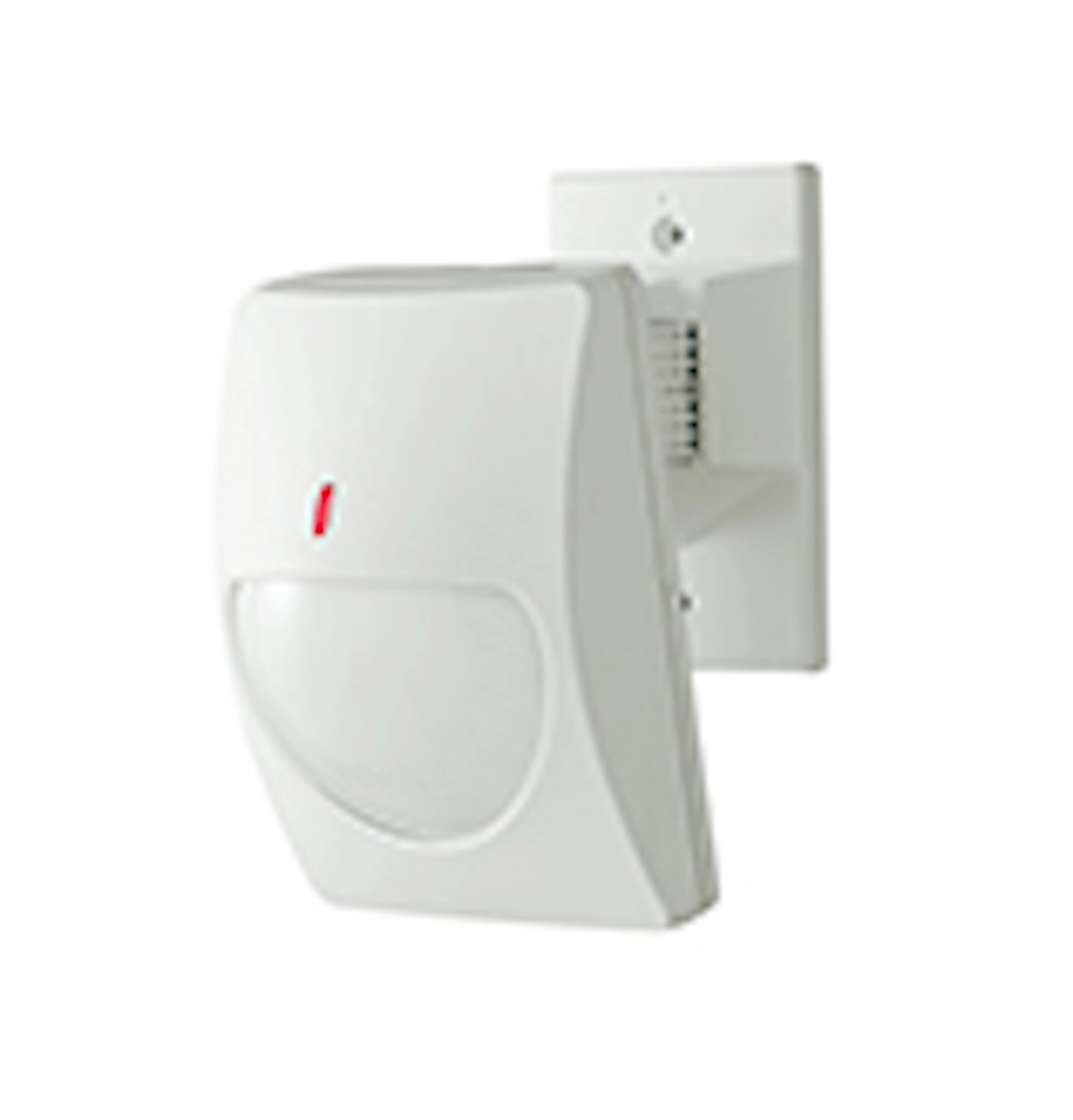

CX-702 MKII Indoor PIR
Wide angle outdoor PIR, 21 m x 21 m and 45 m x 10 m
- wide angle outdoor PIR, wide and long detection modes
- Twin Pyro for advanced reliability
- Double Conductive Shielding to avoid disturbance by intense light and RFI
- Sealed Multi-focus Optics

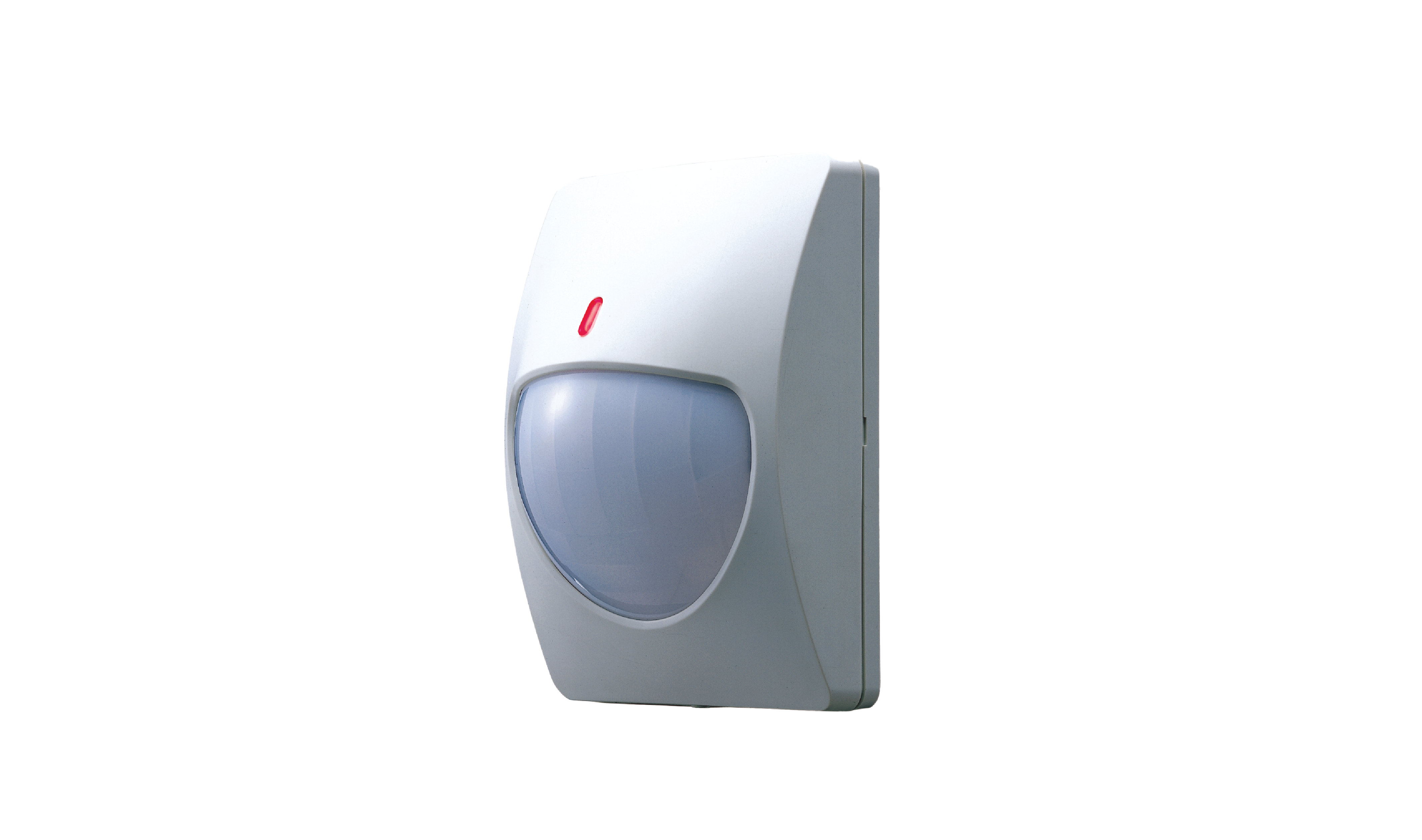

CX-702 MKII Indoor PIR
The CX-702 series is designed to give extremely stable long-range detection performance in a variety of internal commercial and industrial applications. CX-702MKII is a Grade 2 indoor sensor. Please note EN grading does not apply while the unit is used in long range mode
- Buildings
- Roof / Ceiling
Filters
X
Filters
Technology
PIR
Communication
Hardwired
Intrusion Detection
Indoor
- 1
Specifications
See details
Details
Model Code
CX-702MKII
Detection method
Passive Infrared
Detection Coverage
WIDE : 21 m x 21 m 90° 136 zones LONG : 45 m x 10 m 44 zones
Detectable speed
0.3 to 1.5 m/sec.
Sensitivity
1.6°C at 0.6 m/sec. at 2.4 m mounting height
Power input
9.5 to 16 VDC
Current draw
11 mA (max.) at 12 VDC
Alarm period
Approx. 2.5 sec.
Warm-up period
Approx. 60 sec.
Alarm output (R)
N.C. 28 VDC 0.2 A max.
LED indicator
Alarm condition
Operation temperature
-20°C to +50°C
Relative humidity
95% max.
Installation Method (indoor/outdoor)
Indoor
Mounting height
1.5 to 3.6 m
Weight
200 g
Dimensions
140 mm x 100 mm x 69 mm
