AP20NBR
Compact, wireless recessed PIR for motion detection and smart automation

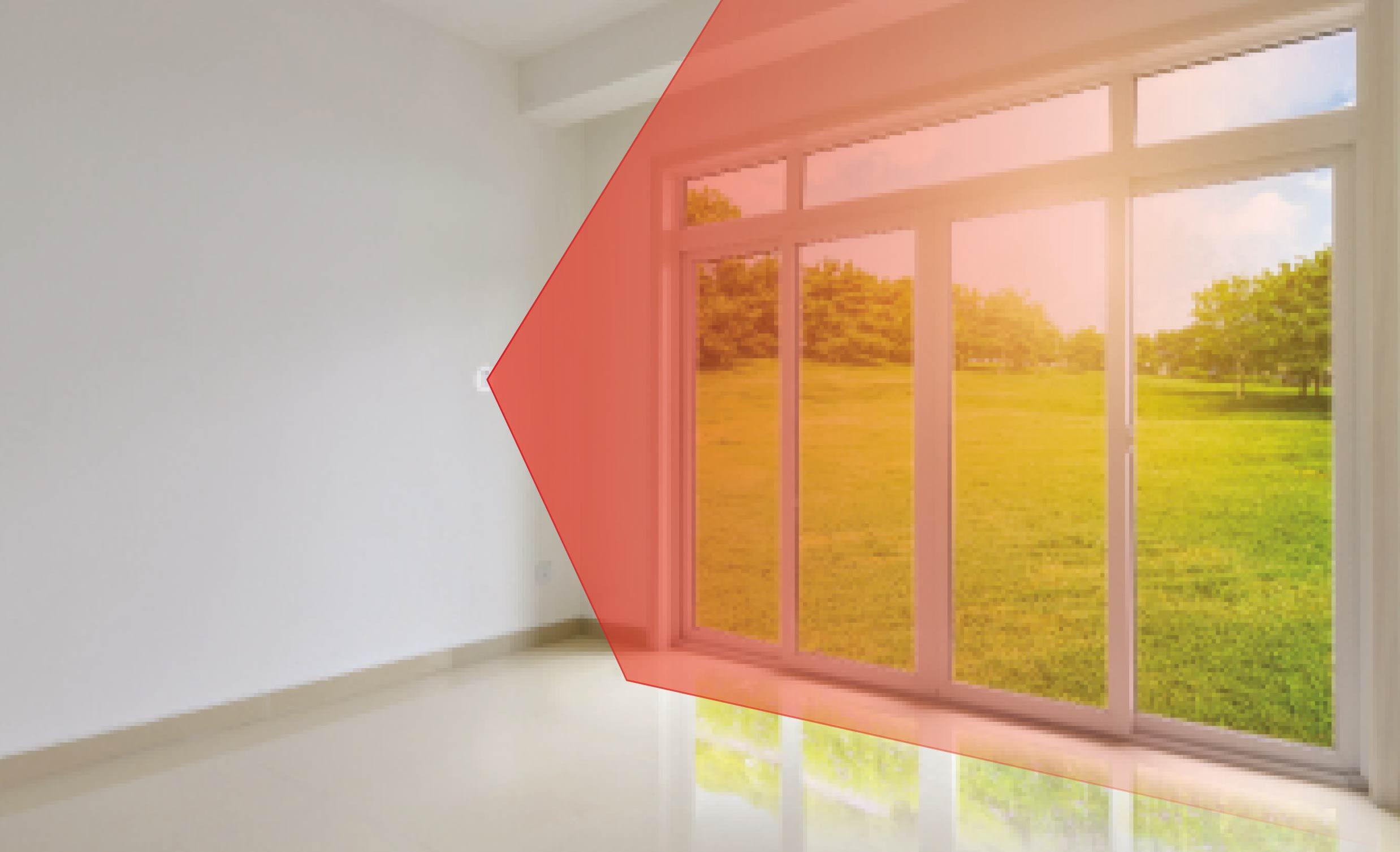

- 6m narrow detection curtain or plane
- Wireless ceiling mount or wall mount
- recessed or 86-type box mount installation
- Adjustable detection sensitivity
Compact and discreet, AP-20NB sensors are installed in the ceiling or on the walll to detect movement in lobby’s, offices or rooms.
- Buildings
- Roof / Ceiling
- House
Related Products
Compact, recessed mount wired PIR for motion detection
- 6m narrow detection curtain or plane
- High-mount ceiling mount or wall mount
- Recessed or 86-type box mount installation
- Adjustable detection sensitivity
Compact recessed mount wired PIR for motion detection and smart automation
- Ceiling mount 360 degree volumetric detection
- High mount between 2.5 m - 4.5 m
- Recessed or 86-type box mount installation
- Adjustable detection sensitivity
Compact recessed mount wireless PIR for motion detection and smart automation
- Ceiling mount 360 degree volumetric detection
- High mount between 2.5 m - 4.5 m
- Recessed or 86-type box mount installation
- Adjustable detection sensitivity
Specifications
See details
Details
Product Range
AP Series
Model Code
AP-20NBR(C)
Detection method
Passive infrared
Detection Coverage
"< Ceiling mount > 6.0 m x 1.0 m (20’ x 3’3”) at 4.5 m (14’9”) height < Wall mount > 6.0 m x 4.5 m (20’ x 14’9”) at 1.5 m (4’11”) height"
Detectable speed
0.3 to 3.0 m/s (1’/s to 9’10”/s)
Sensitivity
2.0℃ at 0.6 m/s (3.6°F at 2’/s)
Power input
2.7 to 3.6 V DC (CR123A battery)
Current draw
3 V DC Stand-by: 10μA, Max.: 4 mA
Alarm output (R)
N.O./N.C., 3.6 V DC 10 mA max.
Trouble output
N.C. 28 V DC 100 mA max. The contact opens once the casing is detached.
LED indicator
Warm-up upon power on: blinking Stand-by: off Alarm: solid on
Operation temperature
-20 to +50℃ (-4°F to +122°F)
Relative humidity
< 95%
Installation Method (indoor/outdoor)
Indoor
Weight
50 g (1.76 oz)
