AP360B
Compact recessed mount wired PIR for motion detection and smart automation
AP360B

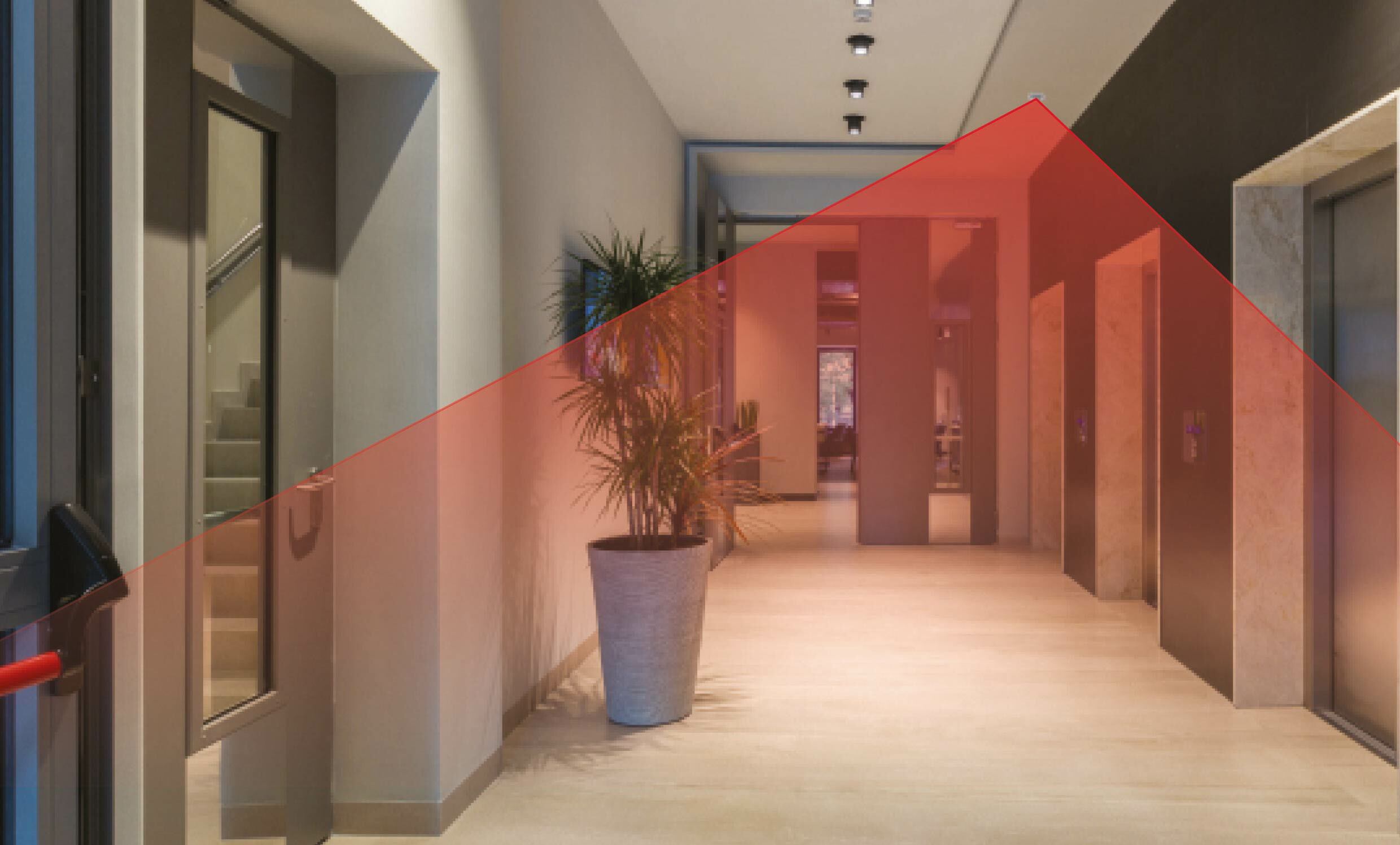

Part of the AP series of recessed mount indoor PIRs, AP-360B is a compact and discreet ceiling mount wired sensor that can detect movement in lobby’s, offices or rooms. Providing 360 volumetric detection it can be used for intrusion detection, light control and home/ building automations.
- Buildings
- Roof / Ceiling
- House
- Ceiling mount 360 degree volumetric detection
- High mount between 2.5 m - 4.5 m
- Recessed or 86-type box mount installation
- Adjustable detection sensitivity
Part of the AP series of recessed mount indoor PIRs, AP-360B is a compact and discreet ceiling mount wired sensor that can detect movement in lobby’s, offices or rooms. Providing 360 volumetric detection it can be used for intrusion detection, light control and home/ building automations.
Specificaties
Bekijk details
Details
Product Serie
AP serie
Model
AP-360B(C)
Detectiemethode
Passief infrarood
Dekking
ø6 m (ø20') bij montagehoogte: 4,5 m (14'9")
Detecteerbare snelheid
0.3 to 3.0 m/s (1’/s to 9’10”/s)
Gevoeligheid
2,0℃ bij 0,6 m/s (3,6°F bij 2'/s)
Power input
9.5 to 16 V DC
Stroomverbruik
12 V DC Stand-by: 11mA, Max.: 13 mA
Alarm output (R)
N.O./N.C., 28 V DC 200 mA max.
Trouble output
N.C. 28 V DC 100 mA max. Het contact gaat open zodra de behuizing wordt losgemaakt.
LED-indicator
Opwarmen na inschakelen: knippert Stand-by: uit Alarm: brandt continu
Bedrijfstemperatuur
-20 to +50℃ (-4°F to +122°F)
Relatieve luchtvochtigheid
< 95%
Installatiemethode (binnen/buiten)
binnen
Gewicht
50 g (1.76 oz)
